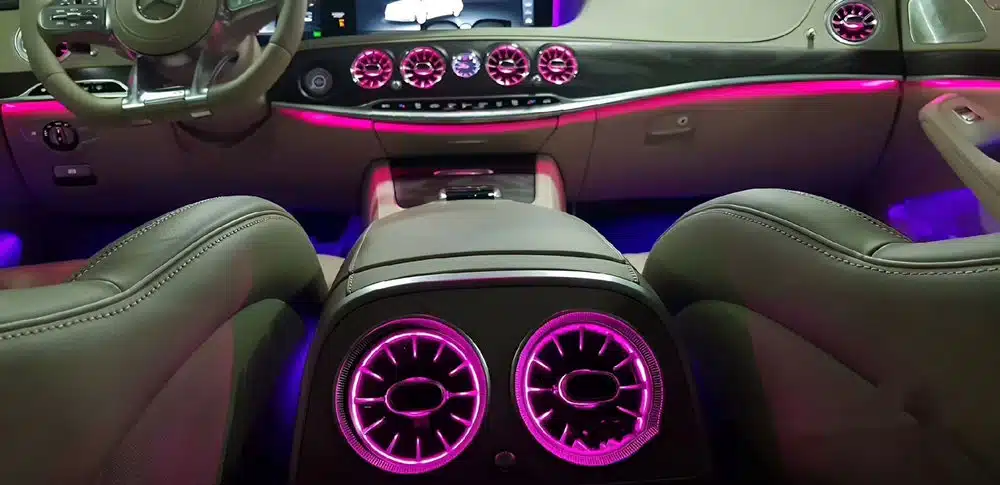

This guide will teach you step by step to install the Mercedes Benz S Class W222 LED Air Vent.
(Which you can order here directly for this product: https://www.anoauto.com/product/w222-led-air-vent).
Remove the original air vent
1,Check the cable layout on your vehicle

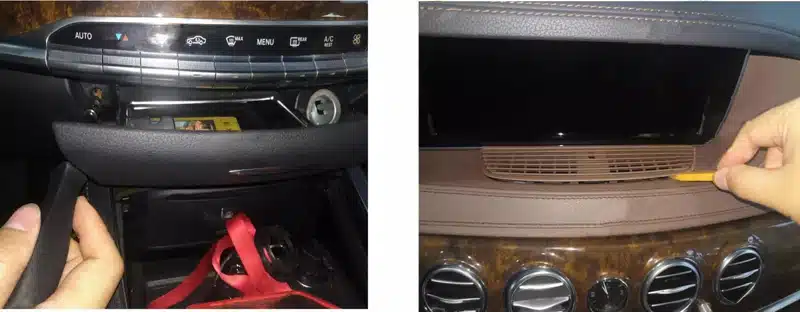

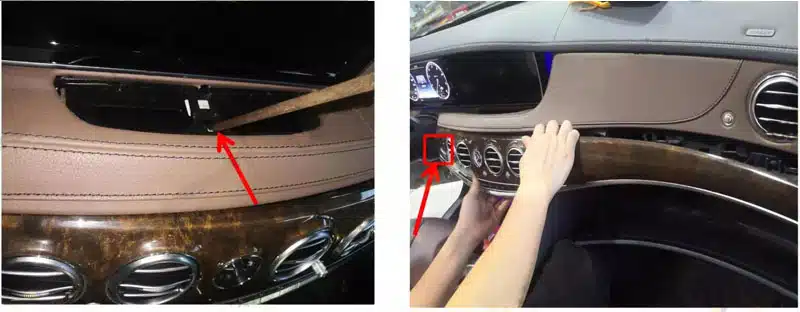

2,Pry open the decorative panel
3,Remove the fixed screws from the center console
4,Remove the air outlet panel under screen

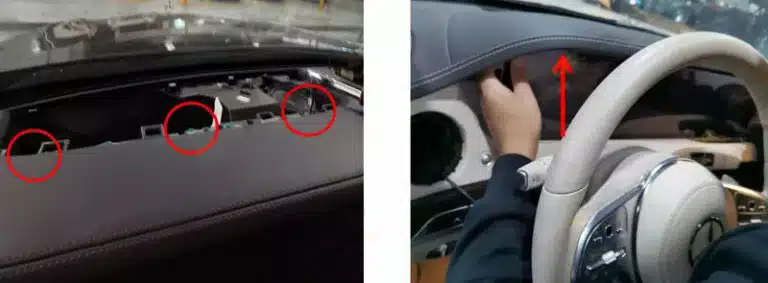

5,Prop out the fixing buckle
6,Remove the key ring, pull out the decoration panel

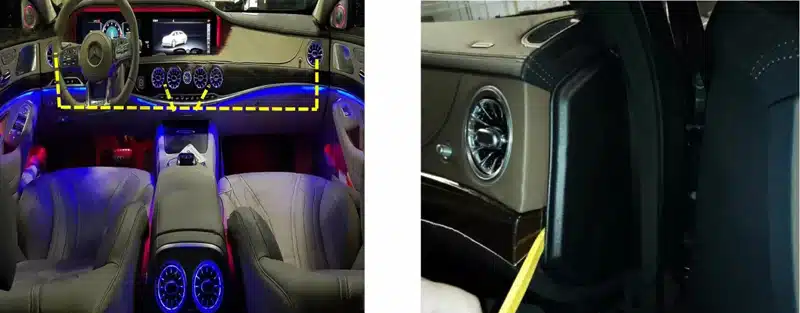

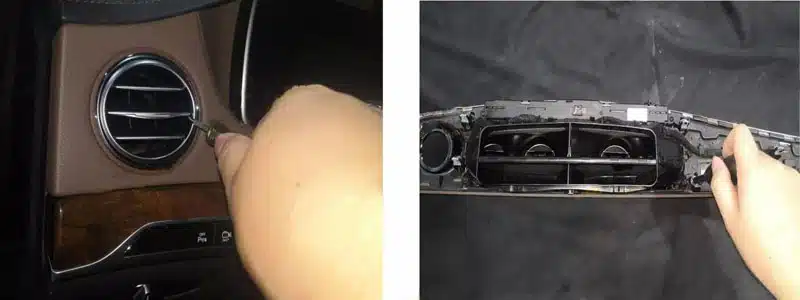

7,Use the tool to pull out original side air vents

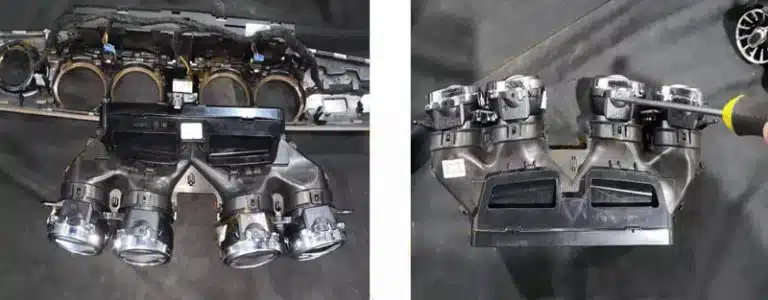

8,Remove the screws which fixed on the vent
9,Take out original vent ring

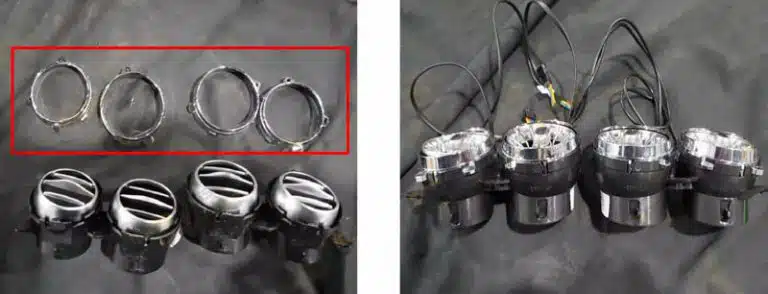

10,Original ring need to install to our air vent
11,Original parts install ot our air vent

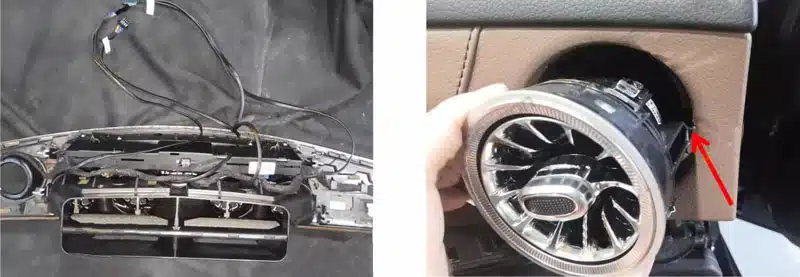

12, Install vent back to original panel
13,Follow the slot postion and install our vent to original vent position

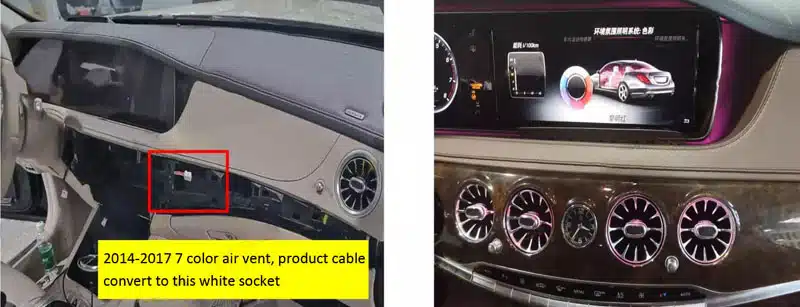

2014-2017 W222 LED air vent cable connection and color setting (7 Colors)
2018-2020 W222 LED air vent cable connection and color setting(64 Colors)

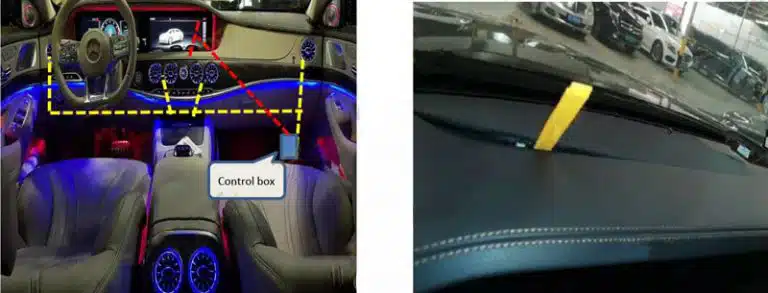

1, Layout the cable
2, Use the plastic tool to remove the speaker cover on the dashboard
3,Remove the screws which fixed on the screen
4,Push up then take out the screen

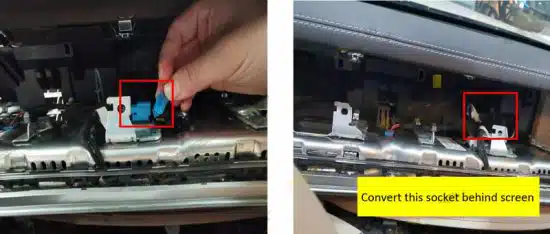

5,Convert to the blue socket behind screen
6, Convert control box socket to original blue socket behind the screen
7,Control box power cable connects to passenger seat fuse box BATT+

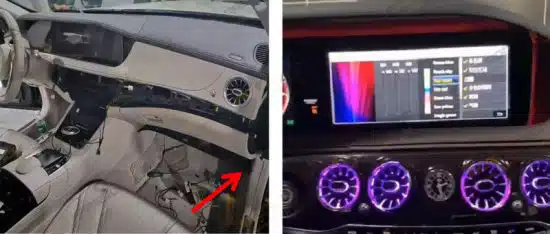

8,Original 64 colors menu as shown in the below picture
